One Source Heating

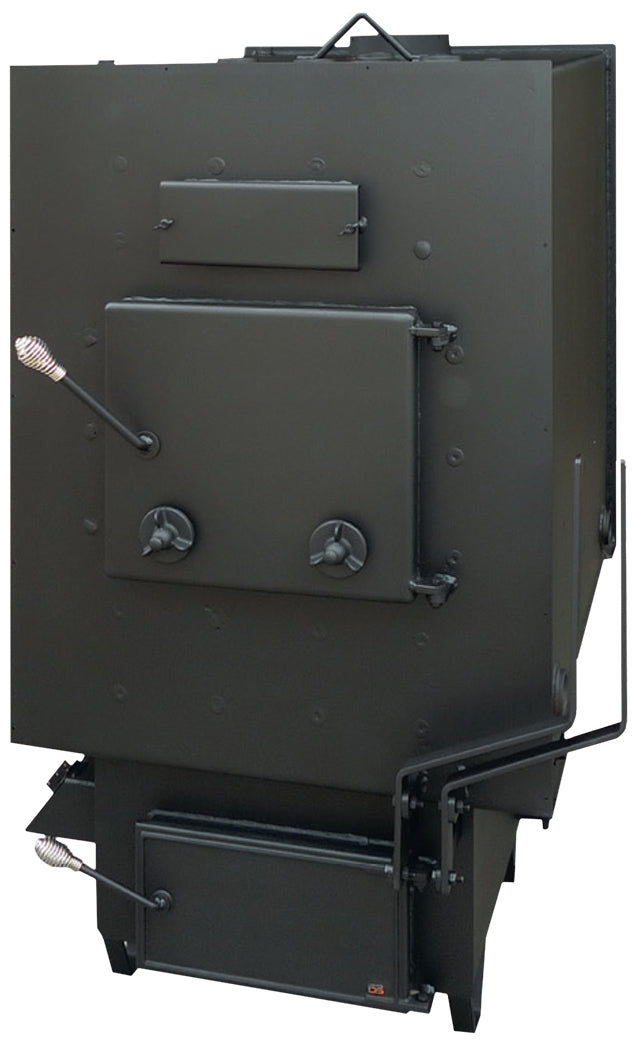

This hydronic system requires no electricity to heat water for floor heating, baseboard, freestanding radiators, heat pumps, or domestic water. They work well with new or existing oil or electric boilers. Our boilers circulate water in the front to prevent cracking. Each unit is pressure tested to 120 PSI and has a powerful heat exchanger for maximum efficiency. Constructed from 1/4” steel, the Power Boilers easily maintain water temperature and feature large capacity ash pans. All of our boilers are designed with a superior cast iron grate system and built to last.
Fuel: Wood or Anthracite
Heating Area:
(5000) Up To 7,5000 sq. ft.
(6000) Up To 10,000 sq. ft.
(7000) Up To 12,000 sq. ft.
Heating Area (Greenhouse):
(5000) Up To 3,800 sq. ft.
(6000) Up To 4,500 sq. ft.
(7000) Up To 5,200 sq. ft.
BTU:
(5000) 380,000
(6000) 450,000
(7000) 520,000
Efficiency: 80%
Fire Box (WxDxH):
(5000) 24” x 39” x 26”
(6000) 24” x 45.5” x 26”
(7000) 24” x 52” 33”
Fire Box Volume:
(5000) 14 cu. ft.
(6000) 16.4 cu. ft.
(7000) 23.8 cu. ft.
Fire Door (WxH):
(5000) 18” x 16”
(6000) 18” x 16”
(7000) 18” x 18”
Ash Door (WxH): 16.5” x 8.5”
Top Exhaust:
(5000) 8”
(6000) 8”
(7000) 10”
Rear Exhaust (Optional):
(5000) 8” (50.75” To Center)
(6000) 8” (50.75” To Center)
(7000) 10” (56.75” To Center)
Water Capacity:
(5000) 125 Gallons
(6000) 136 Gallons
(7000) 175 Gallons
Inlet / Outlet:
(5000) 8 (2.00")
(6000) 8 (2.00")
(7000) 8 (2.00")
Overall Size (WxDxH):
(5000) 33.5” x 46” x 62”
(6000) 33.5” x 53” x 62”
(7000) 33.5” x 59” x 72”
Weight:
(5000) 1,950 lbs.
(6000) 2,100 lbs.
(7000) 2,500 lbs.
U.L. Tested: No
Warranty:
5 Year Limited
1 Year Controls
Made In Lancaster County, PA
