Built To Perform

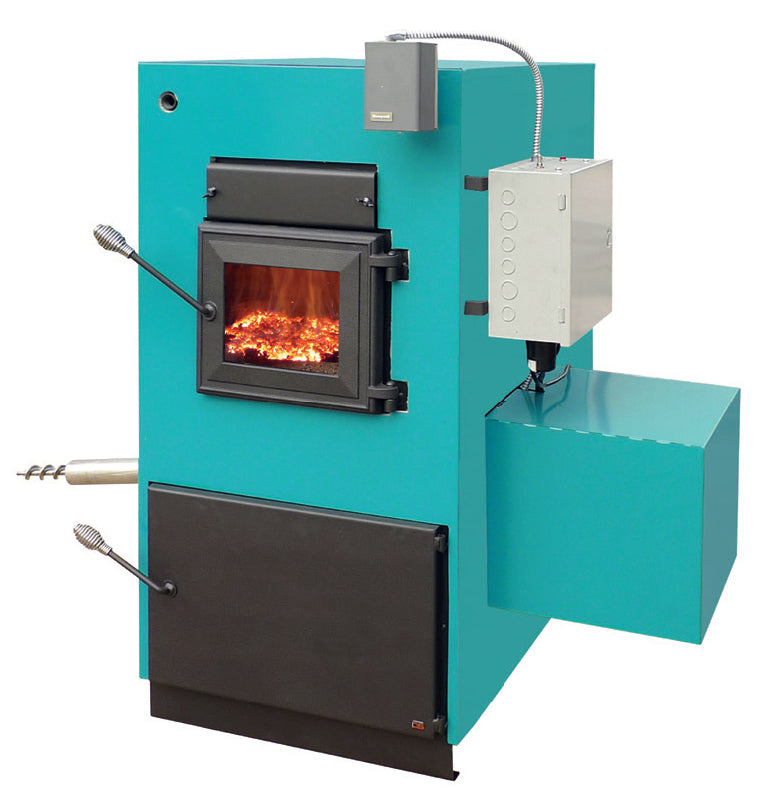

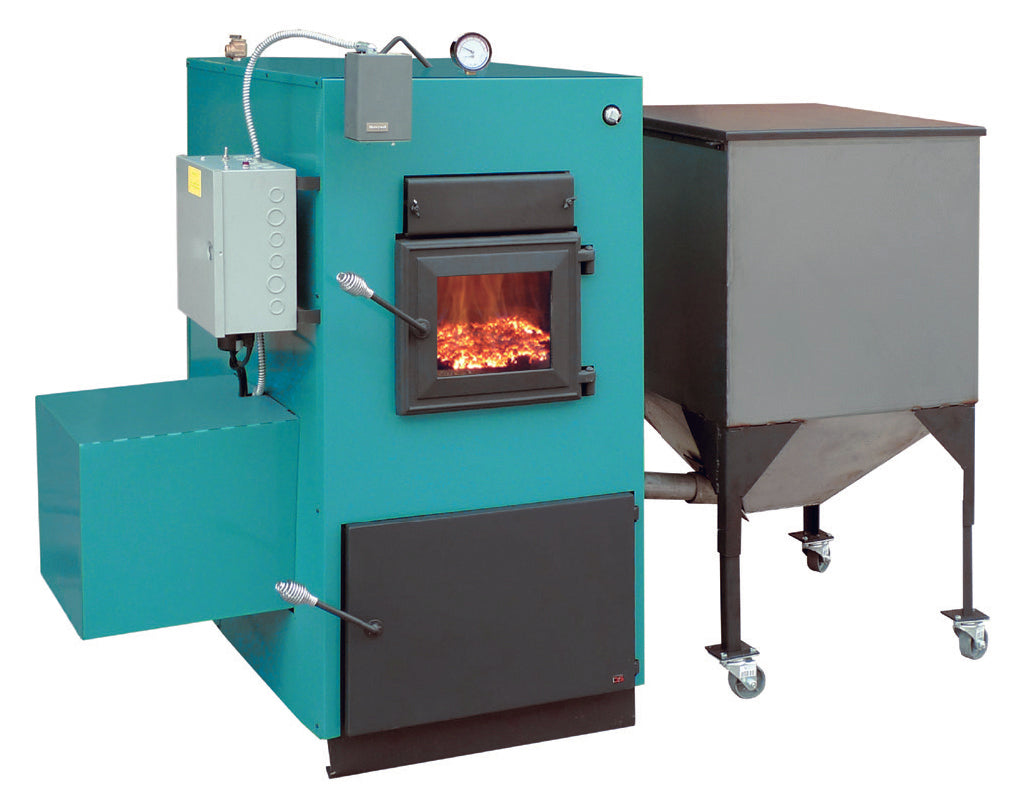

The SB200 auger-fed stoker boiler features a rugged pot burner built to handle anthracite rice with precision and power. Engineered for heavy-duty performance, it pairs seamlessly with an optional 500 lb. hopper or coal bin, ensuring a continuous, hassle-free fuel supply. Every inch reflects DS’s ‘Trust In Quality’ philosophy—because lasting warmth starts with lasting design.
Fuel: Anthracite Rice
Heating Area: 1,000 - 5,000 sq. ft.
Heating Area (Greenhouse): 500 - 2,500 sq. ft.
BTU: 50,000 - 230,000
Efficiency: 82.8%
Rear Exhaust: 8”
Water Capacity: 50 Gallons
Inlet / Outlet: 2.00”
Fire Box (WxDxH): 20” x 18” x 18.25”
Burn Pot Size: 10”
Fire Door (WxH): 13.75” x 12”
Ash Pan (WxDxH): 22” x 21” x 10”
Ash Door (WxH): 24” x 15.5”
Overall Size (WxDxH): 27” x 40” x 53”
Width w/ Blower & Control Box: 43”
500 lb. Hopper (WxDxH): 26” x 26” x 48”
Total Width w/ 500 lb. Hopper: 77.5”
Weight: 1,175 lbs. (Base 176 lbs.,
Boiler 775 lbs., Components 224 lbs.)
U.L. Tested: Yes
Insulated Jacket: Optional
Warranty:
5 Year Limited
1 Year Electrical
1Year Bushings
1 Year Wear-plates
Made In Lancaster County, PA
