Ultimate Efficiency & Practicality

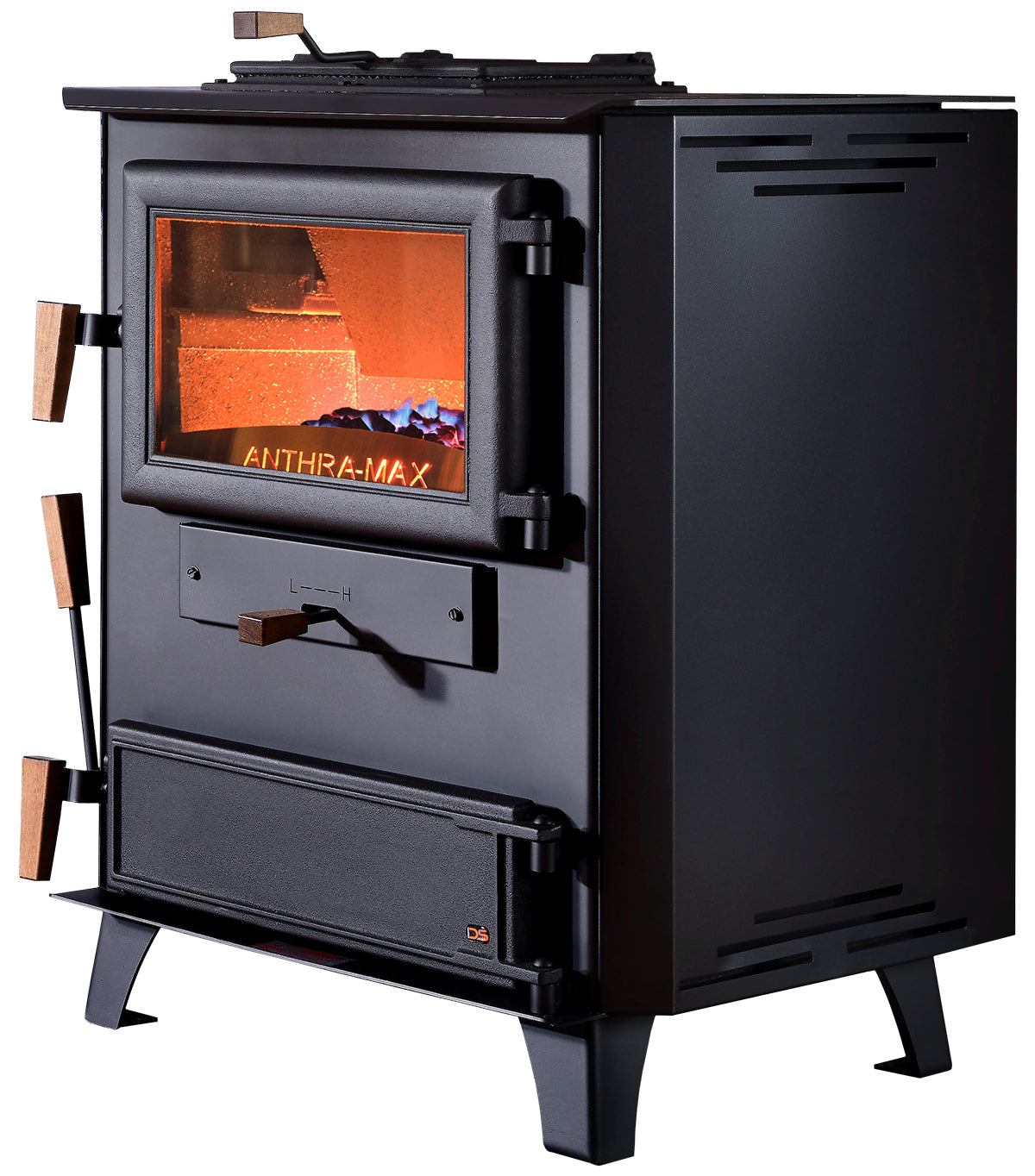

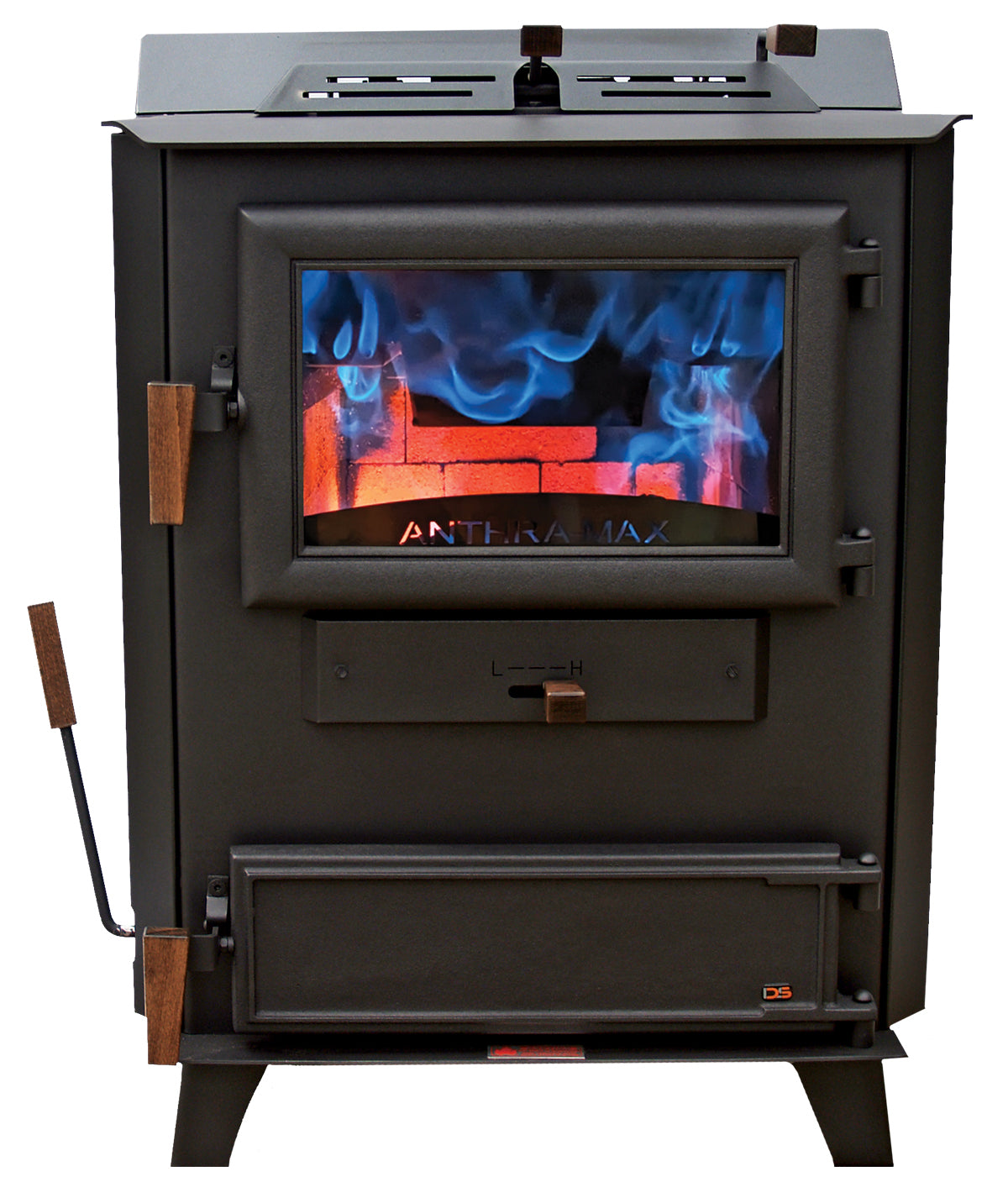

Efficiency and function is the focus of the Anthra-Max. Designed for the first floor or basement, the Anthra-Max is more than a great looking stove, it will heat your entire home without breaking a sweat!
Fuel: Anthracite
Heating Area:
(XV14) 500 - 1,400 sq. ft.
(XV15) 1,000 - 2,000 sq. ft.
(XV16) 1,500 - 2,500 sq. ft.
BTU:
(XV14) 55,000
(XV15) 72,000
(XV16) 105,000
Efficiency: 82.8%
Fire Box (WxDxH):
(XV14) 16” x 12” x 14”
(XV15) 16” x 16” x 14”
(XV16) 16” x 20” 14”
Fire Box Height To Hopper: 11.5”
Fire Box Volume:
(XV14) 1.55 cu. ft.
(XV15) 2.0 cu. ft.
(XV16) 2.60 cu. ft.
Fire Door (WxH):
18.25” x 11.75”

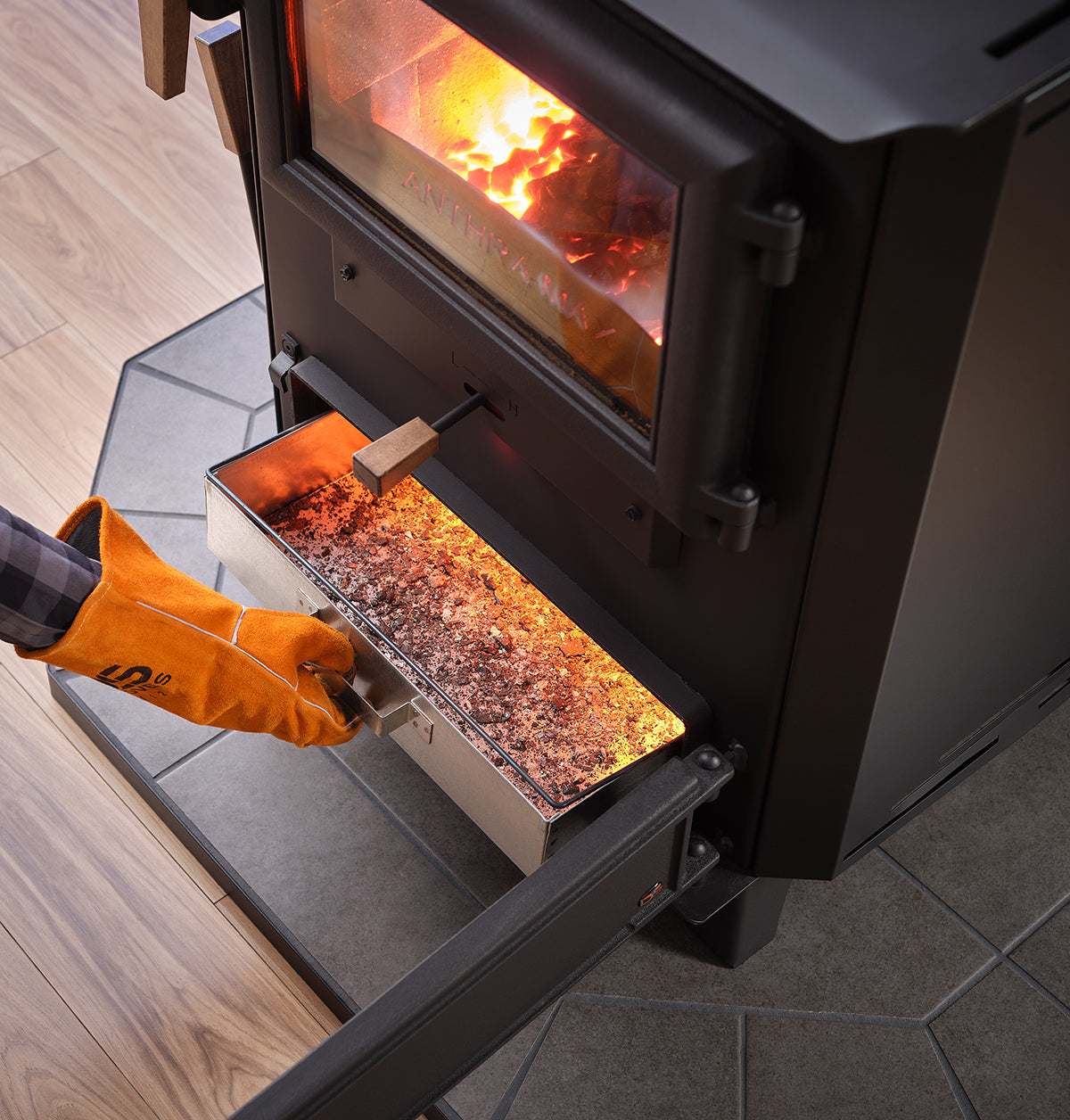

Ash Pan (WxDxH):
(XV14) 18” x 12” x 3.5”
(XV15) 18” x 16” x 3.5”
(XV16) 18” x 20” x 3.5”
Ash Door (WxH):
19” x 5.25”

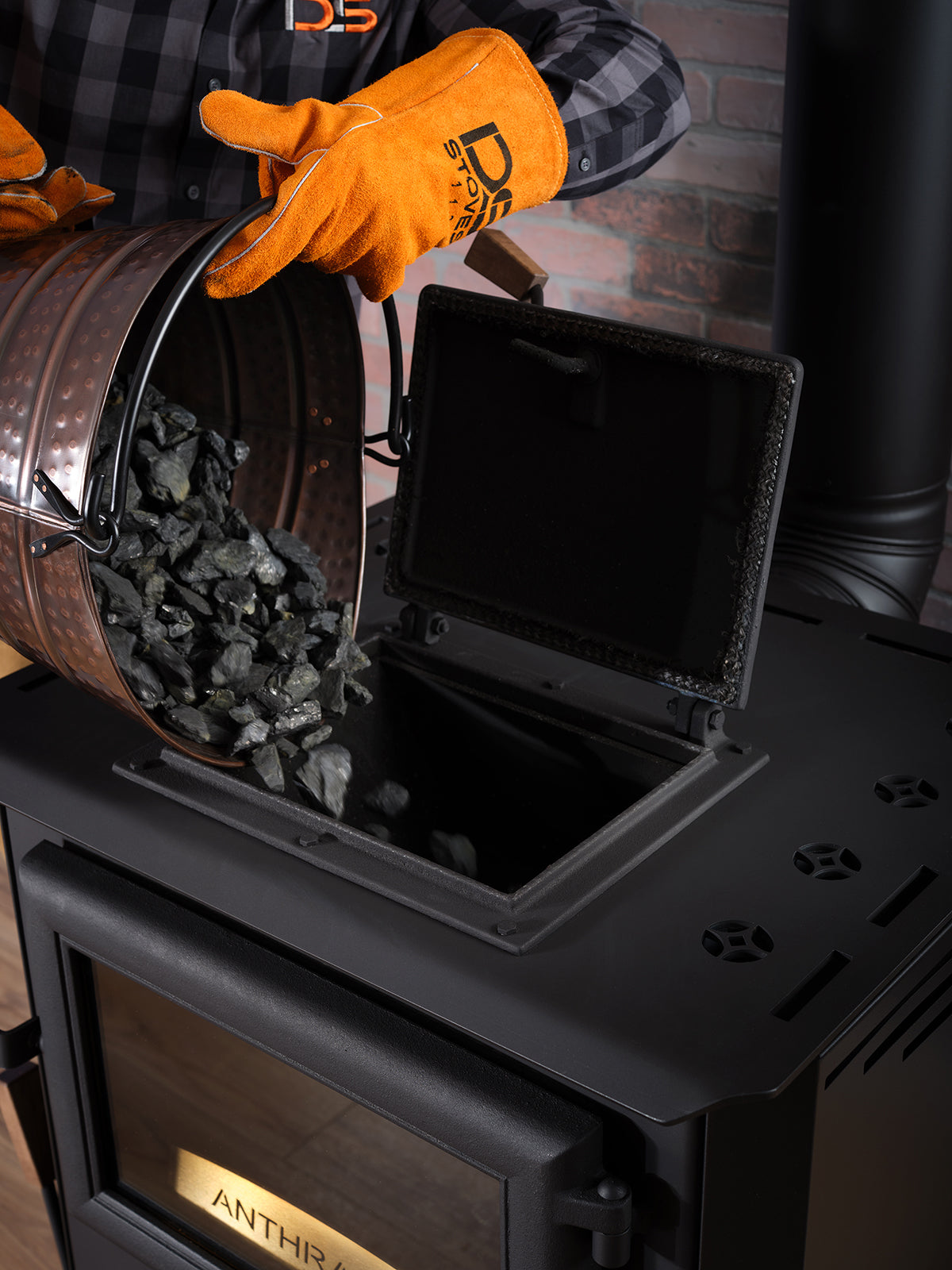

Hopper Capacity: 40 lbs.
Total Capacity w/ Hopper:
(XV14) 85 lbs.
(XV15) 110 lbs.
(XV16) 130 lbs.

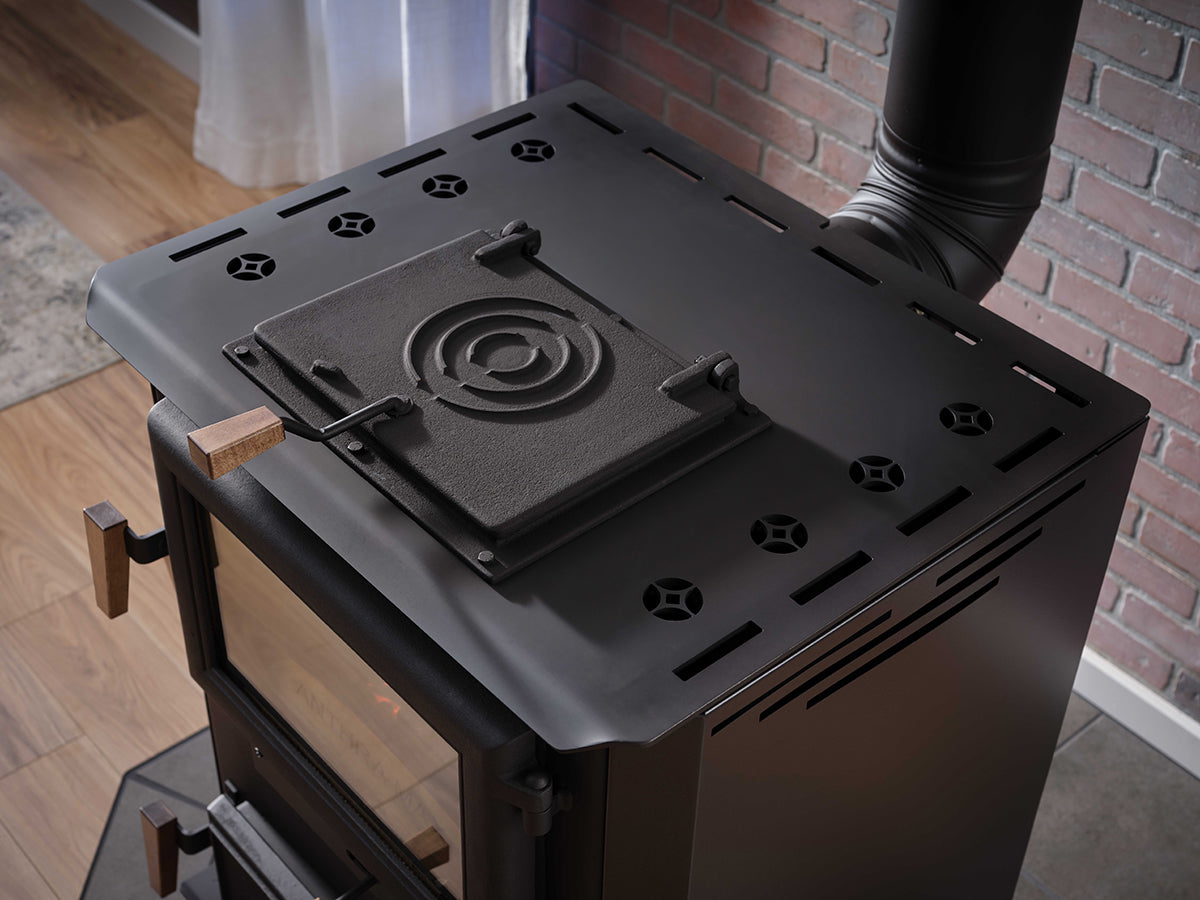

Hopper Door (WxD):
11.75” x 8.5”
Rear Exhaust:
6” (32.25” To Center)
Optional Blower CFM: 160
Optional Cover Lid:
Available For All Models
Optional Step Top:
(XV14) N/A
(XV15) Available
(XV16) Available
Size w/ Living Room Sides (WxDxH):
(XV14) 28.5” x 22.5” x 39.5”
(XV15) 28.5” x 26.5” x 39.5”
(XV16) 28.5” x 31.5” x 39.5”
Size w/ Basement Sides (WxDxH):
(XV14) N/A
(XV15) 34.5” x 26.5” x 39.5”
(XV16) 34.5” x 31.5” x 39.5”
Weight:
(XV14) 490 lbs.
(XV15) 590 lbs.
(XV16) 650 lbs.
U.L. Tested: Yes
Warrany: 5 Year Limited
Made In Lancaster County, PA
