The Heat Monsters

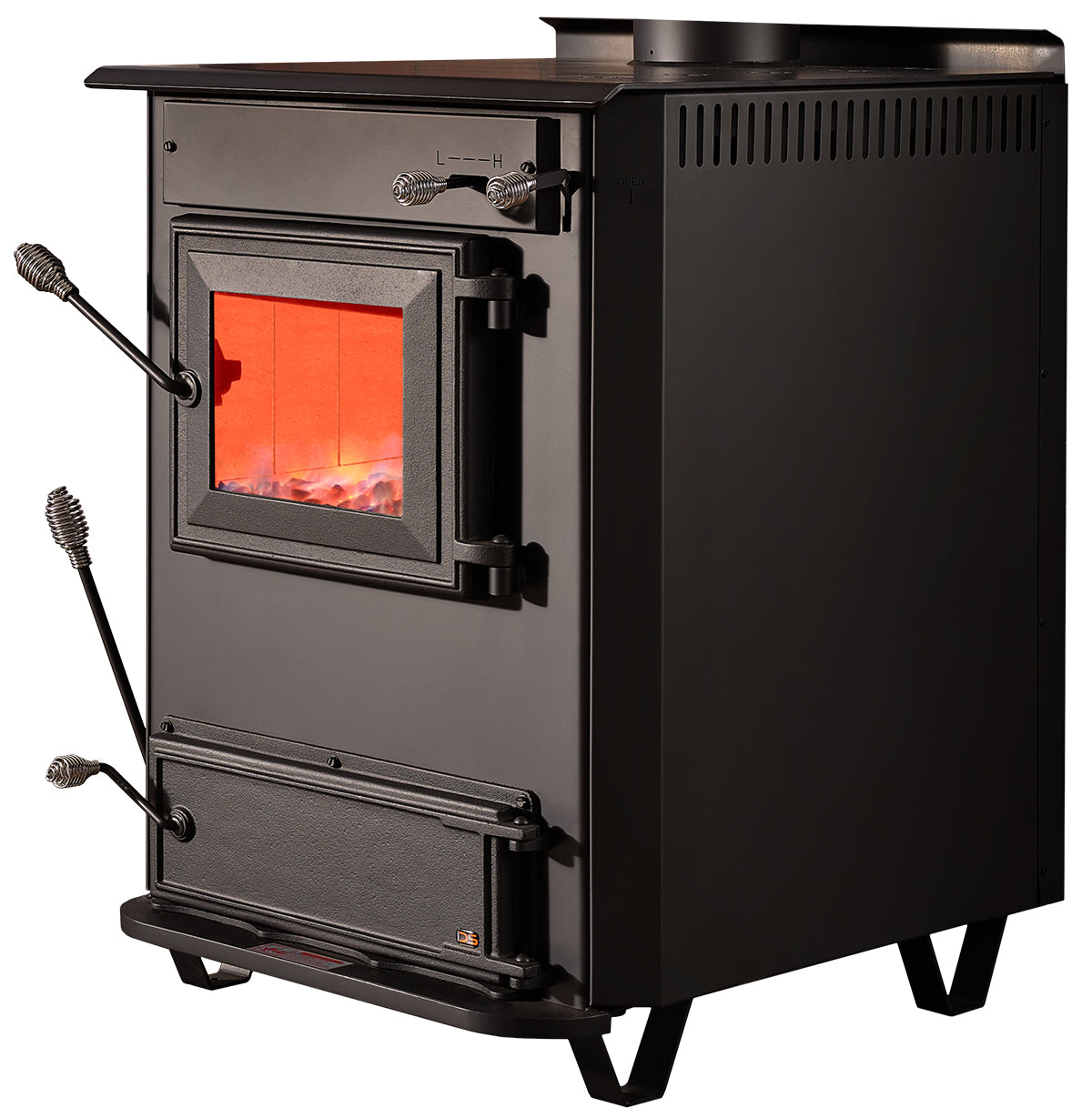

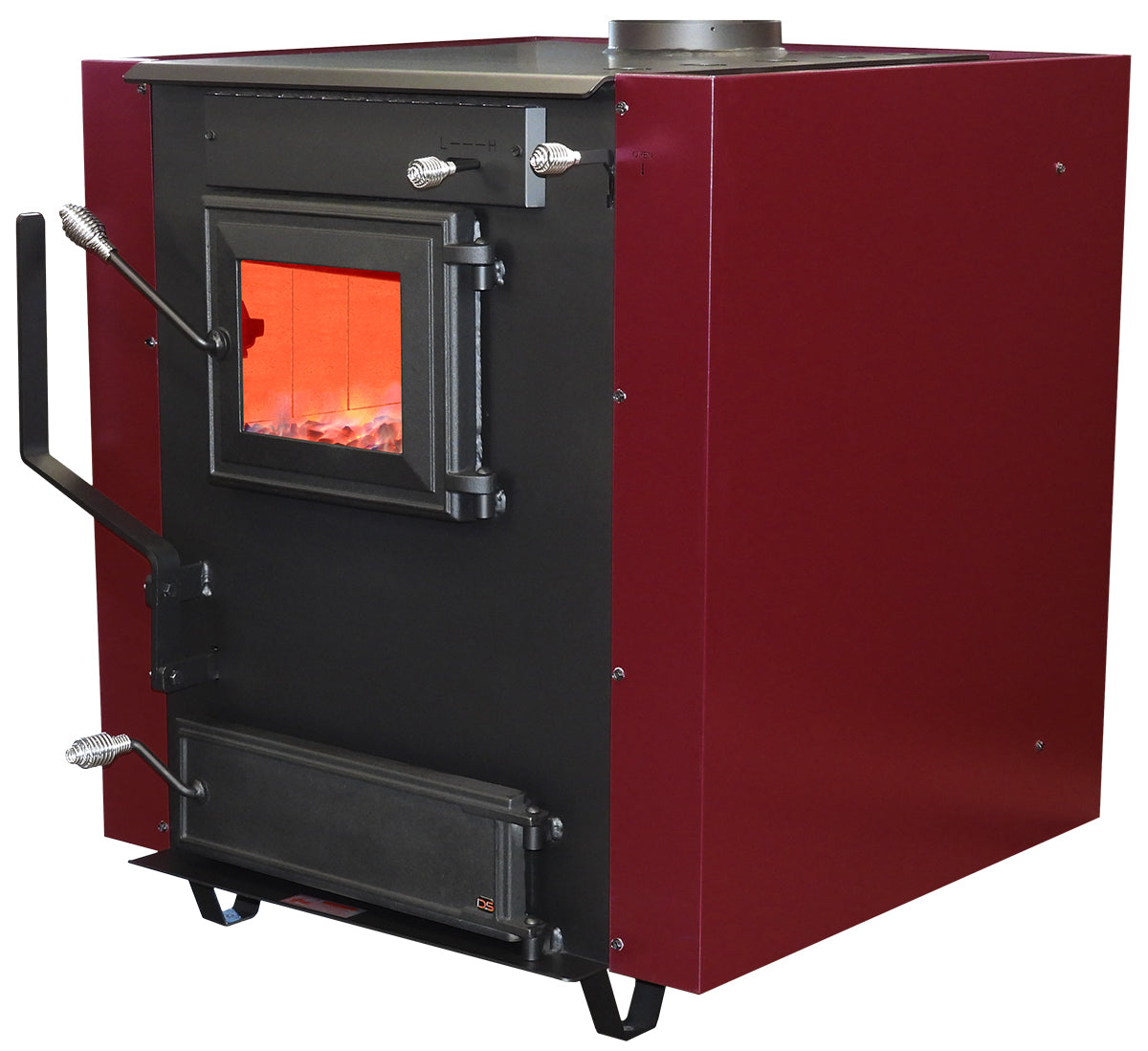

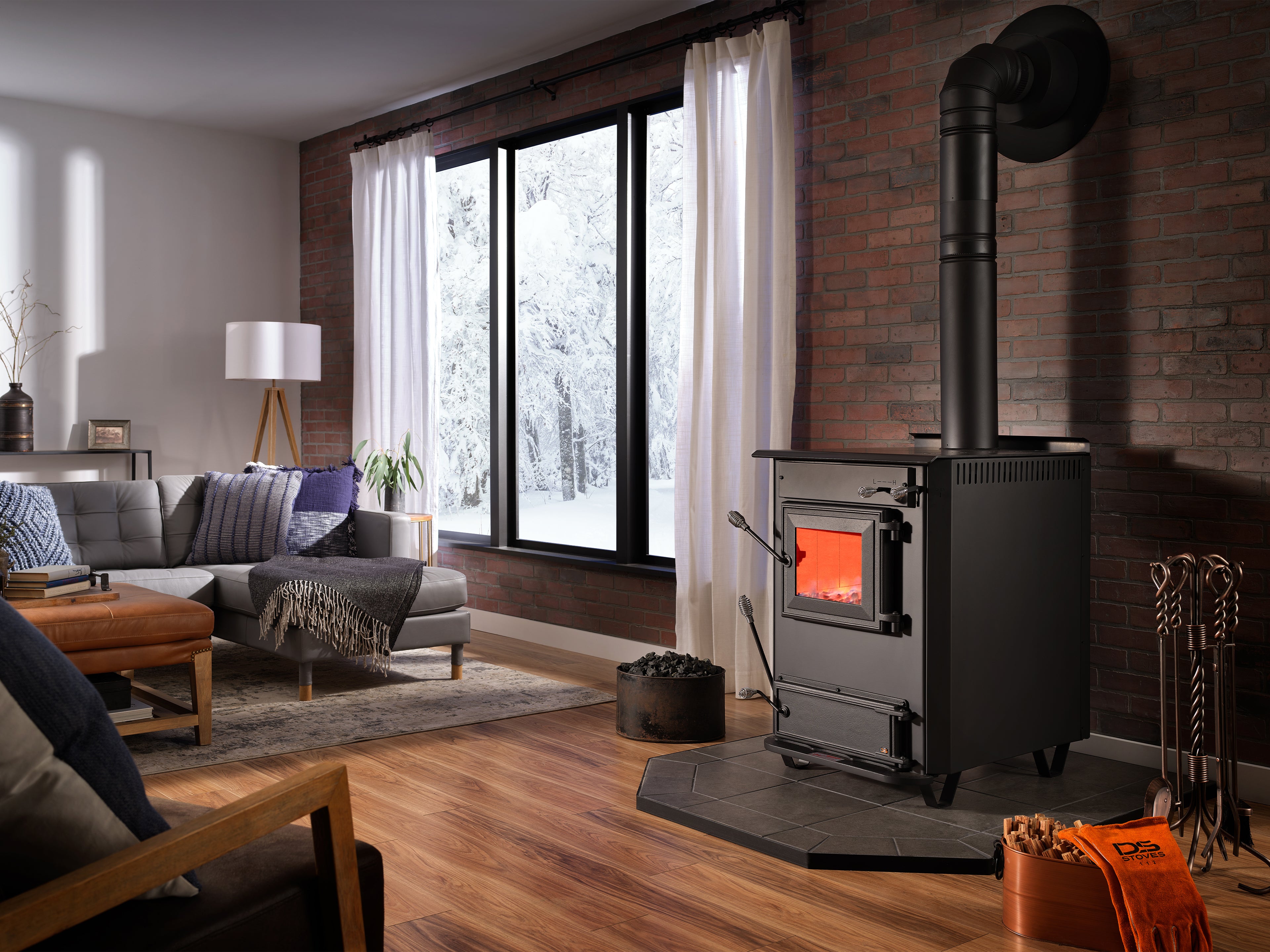

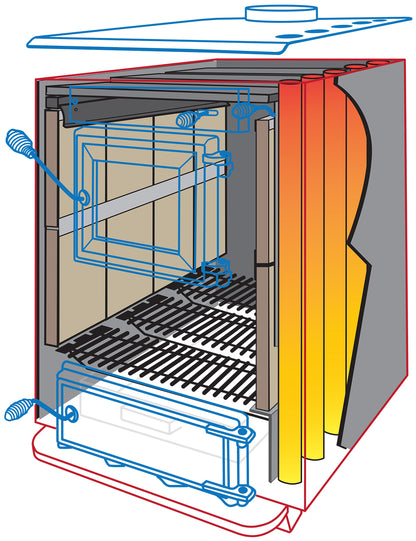

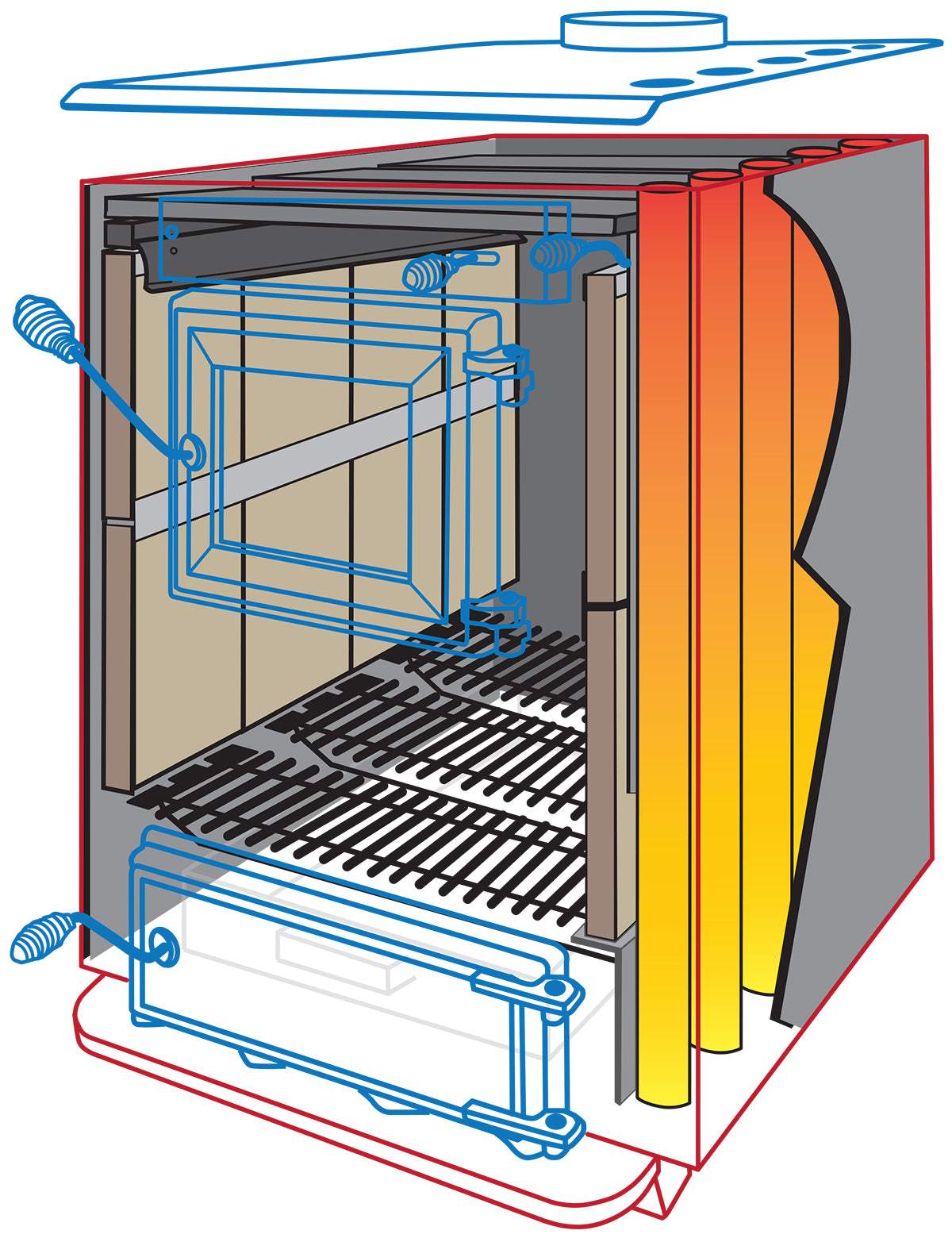

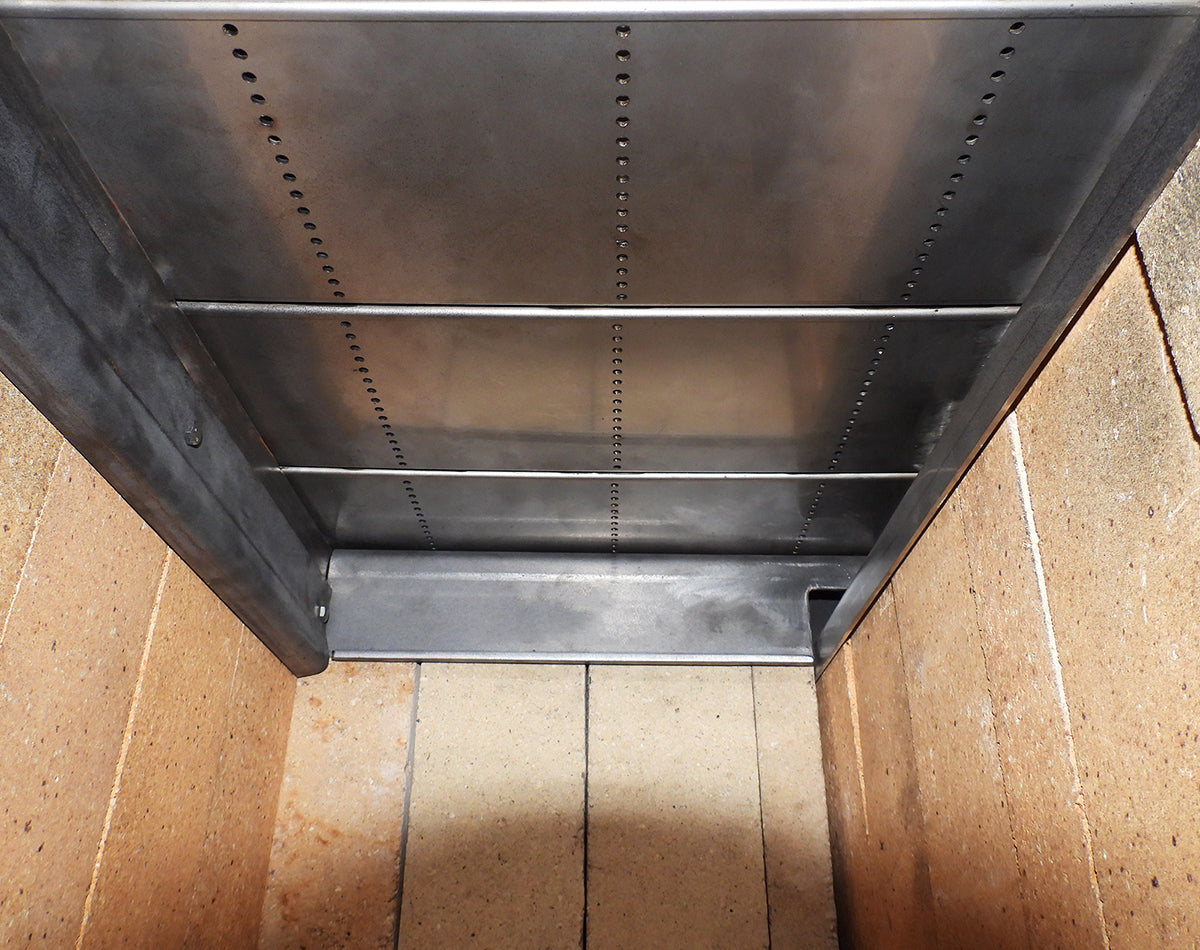

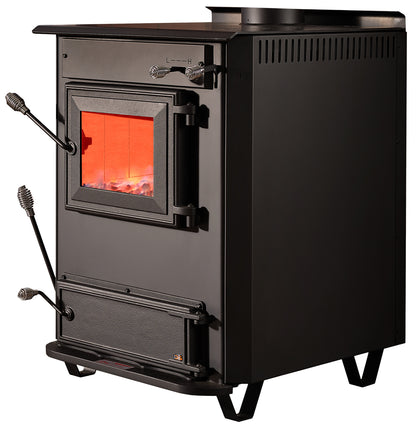

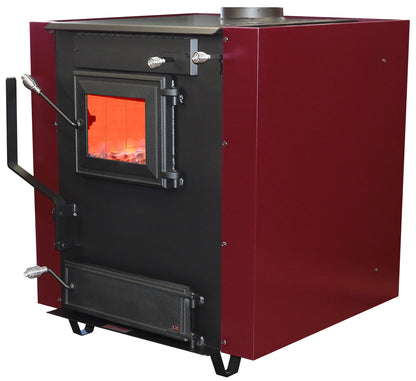

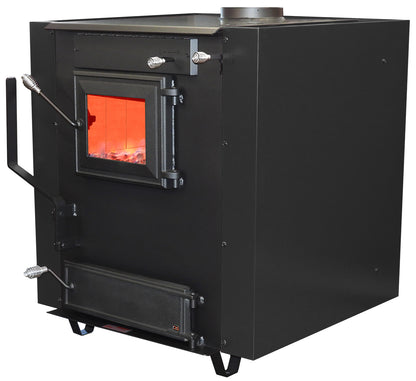

The EnergyMax ND110 is designed for high efficiency and a clean burn. The ND110 is perfect to use in the basement to serve as a whole home heater. There is a living room sheet metal option as shown above for a smaller footprint and first floor installation. The EnergyMax ND160 is a basement model designed to heat your entire home using convection. The ND160 also works well in a shop or greenhouse. Controlled by the DS Regulator, the reburn baffle system, and heat exchanger make these units 85% efficient.
Fuel: Anthracite
Heating Area:
(ND110) 1,200 - 2,400 sq. ft.
(ND160) 2,000 - 3,500 sq. ft.
BTU :
(ND110) 110,000
(ND160) 160,000
Efficiency: 85%
Fire Box (WxDxH):
(ND110) 14” x 22” x 20”
(ND160) 16” x 24” x 20"
Fire Box Volume:
(ND110) 3.6 cu. ft.
(ND160) 4.5 cu. ft.
Fire Door (WxH):
13.75” x 12”
Ash Pan (WxDxH):
(ND110) 15.5” x 21” x 3”
(ND160) 18” x 25” x 4”
Ash Door (WxH):
(ND110) 16.5” x 5.5”
(ND160) 19” x 5.5"
Top Exhaust:
(ND110) 6”
(ND160) 8”
Optional Blower CFM: 273
Size w/ Living Room Sides (WxDxH):
(ND110) 25.625” x 33.25” x 37.25”
Size w/ Basement Sides (WxDxH):
(ND110) 33.5 x 33.25 x 37.25
(ND160) 36” x 36.5” x 41”
Weight:
(ND110) 750 lbs.
(ND160) 1,050 lbs.
U.L. Tested: Yes
Made In Lancaster County, PA
