Economical Efficient Heating

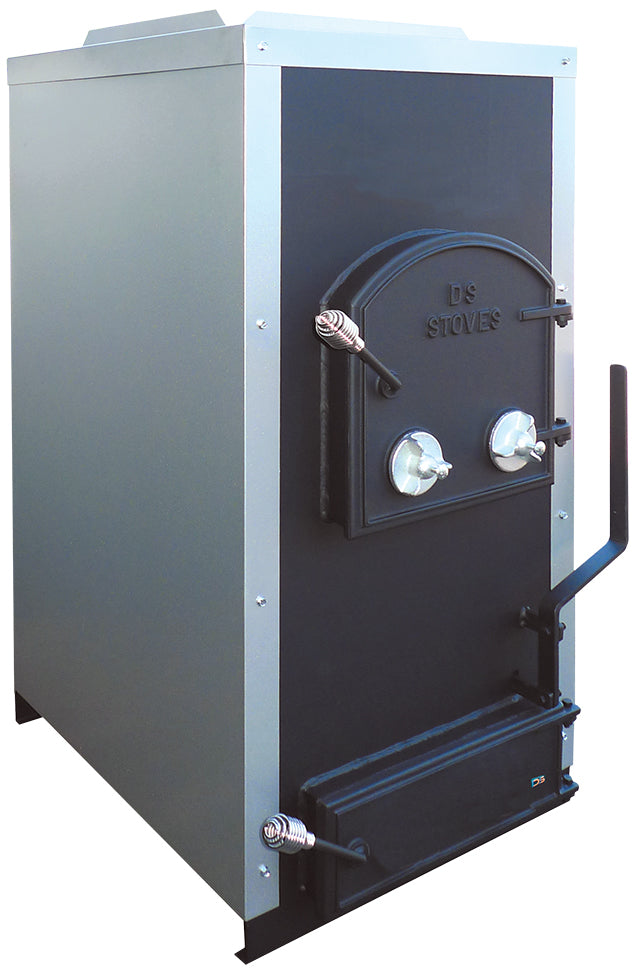

The Ecomiser was designed to be economical. This U.L. Tested anthracite burning furnace is controlled with a DS Hot Air Draft Regulator, combining with a reburn system for maximum efficiency using less fuel. The Ecomiser offers a domestic water option and a single-speed blower. It can heat a whole home, shop, or greenhouse for less money.
Fuel: Anthracite
Heating Area: 1,000 - 2,500 sq. ft.
BTU: 120,000
Efficiency: 76.4%
Fire Box (WxDxH): 16” x 24” x 24.25”
Fire Box Volume: 5.4 cu. ft.
Fire Door (WxH): 14” x 14.5”
Ash Pan (WxDxH): 15.5” x 23” x 3.5”
Ash Door (WxH): 16.5” x 5.5”
Height To Exhaust: 44” Center
Rear Exhaust: 8”
Plenum Inlet & Outlet: 18” x 18”
Blower CFM: 965
Overall Size (WxDxH): 24” x 29.5” x 49.75"
Depth w/ Filter Box: 50.5"
Weight: 500 lbs.
U.L. Tested: Yes
Warranty:
5 Year Limited
1 Year Electrical
Made In Lancaster County, PA
