Trust The King Of Furnaces

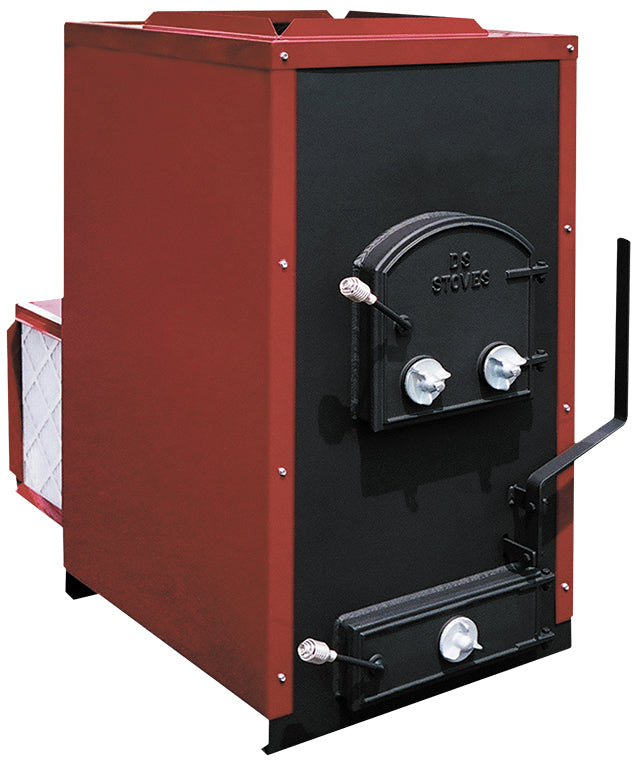

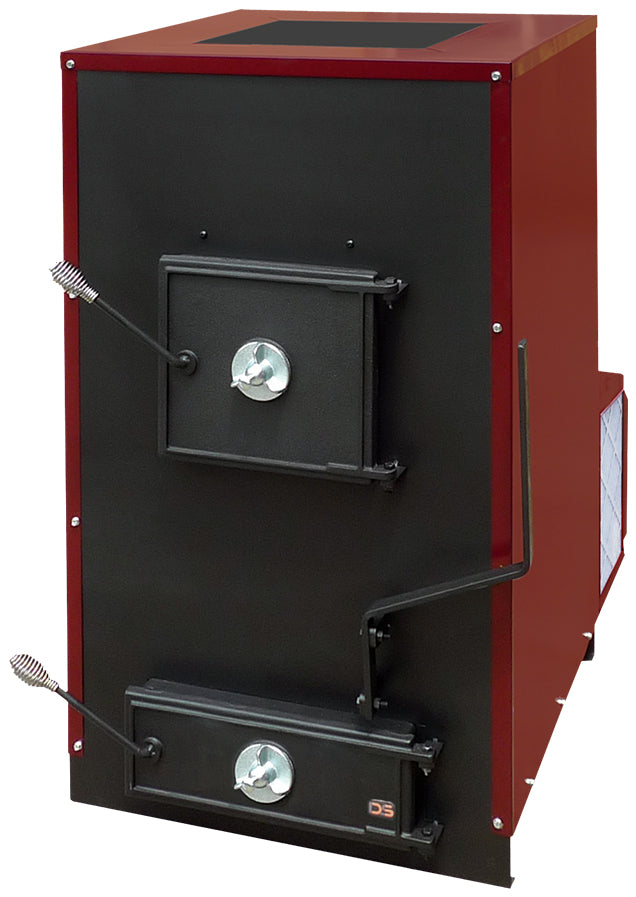

Our goal is to serve your needs with a very efficient, clean burning furnace. The Kozy-King’s reburn system and heat exchanger provide maximum efficiency with less fuel. This U.L. Tested anthracite burning furnace is thermostat controlledfor even temperature. The Kozy-King comes with a 3-speed blower and a safety features to prevent overheating. The outside cabinet is insulated to minimize heat loss. You can use this unit independently or in conjunction with another furnace. The Kozy-King will heat your whole home, shop, or greenhouse.
Fuel: Anthracite
Heating Area:
(100-14) 1,200- 2,000 sq. ft.
(300-09) 2,000 - 3,000 sq. ft.
(400-09) 2,500 - 4,000 sq. ft.
BTU:
(100-14) 90,000
(300-09) 140,000
(400-09) 205,000
Efficiency: 85.1%
Fire Box (WxDxH):
(100-14) 14” x 20” x 24”
(300-09) 16” x 22” x 26.5”
(400-09) 16” x 29” 26.5”
Fire Box Volume:
(100-14) 3.9 cu. ft.
(300-09) 5.4 cu. ft.
(400-09) 7.1 cu. ft.
Fire Door (WxH):
(100-14) 11” x 12”
(300-09) 14” x 14.5”
(400-09) 14” x 14.5”
Ash Pan (WxDxH):
(100-14) 14.5” x 21” x 3”
(300-09) 15.5” x 23” x 3.5”
(400-09) 15.5” x 30” x 3.5”
Ash Door (WxH): 16.5” x 5.5”
Rear Exhaust:
(100-14) 6” (42.5” To Center)
(300-09) 8” (47” To Center)
(400-09) 8” (47” To Center)
Plenum Inlet & Outlet: 18" x 18"
3 Speed Blower CFM:
1,100 / 1,350 / 1,650
Overall Size (WxDxH):
(100-14) 27.5” x 27” x 47.75”
(300-09) 28.5” x 29” x 53”
(400-09) 28.5” x 36” x 53”
Depth w/ Filter Box:
(100-14) 47"
(300-09) 49"
(400-09) 56"
Weight:
(100-14) 700 lbs.
(300-09) 838 lbs.
(400-09) 974 lbs.
U.L. Tested: Yes
Warranty:
5 Year Limited
1 Year Electrical
Made In Lancaster County, PA
