The Rise of Quality & Performance

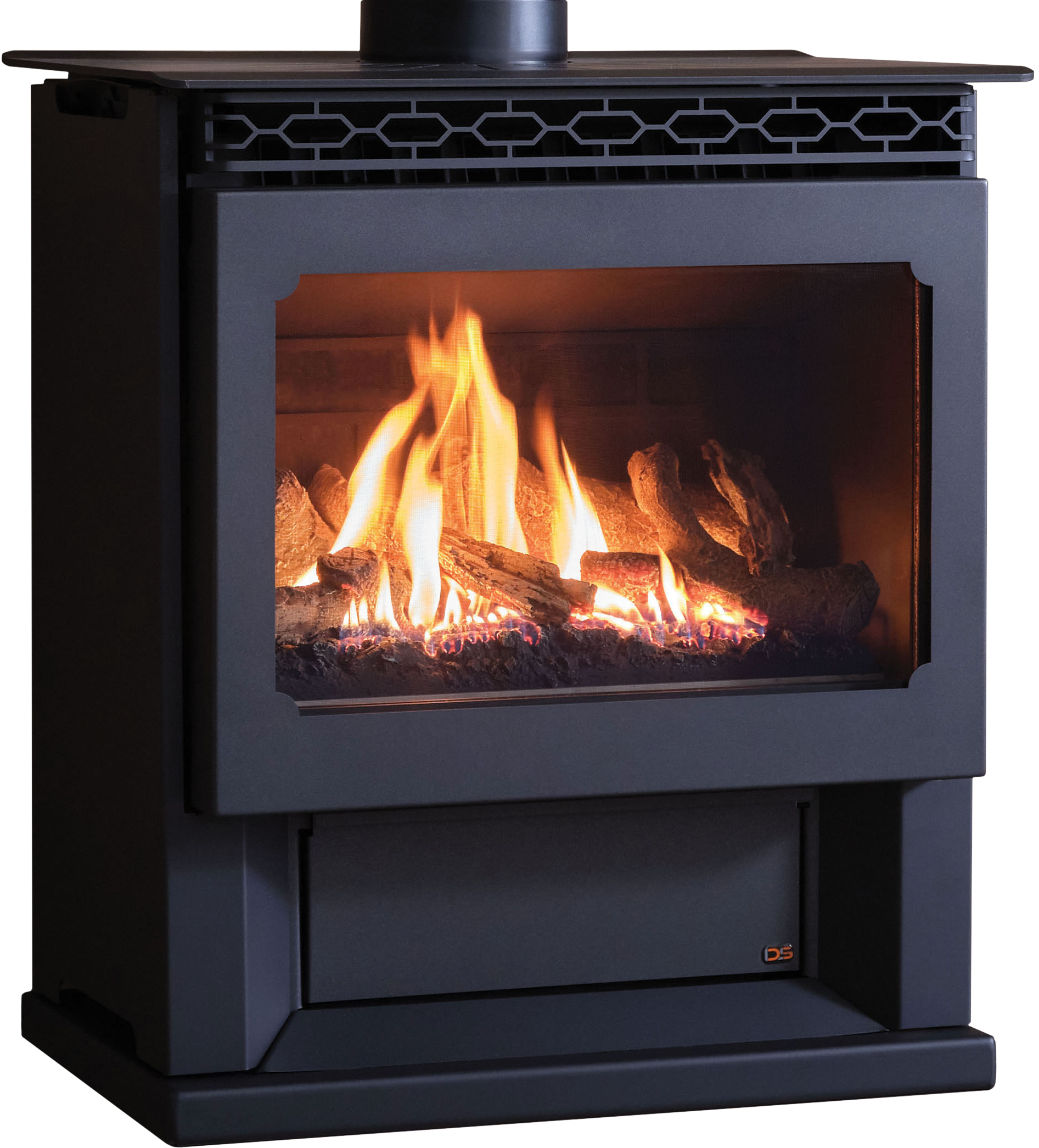

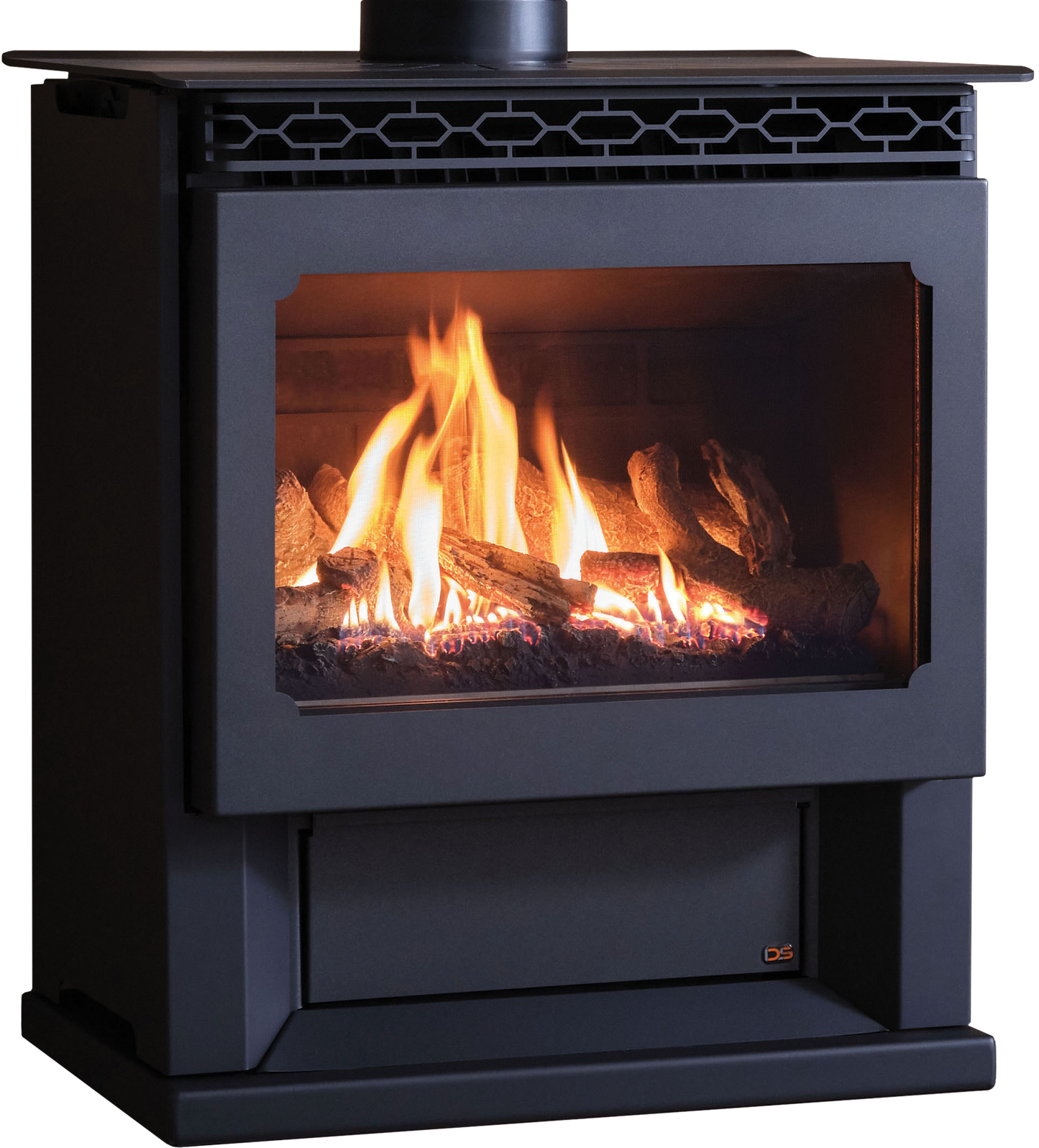

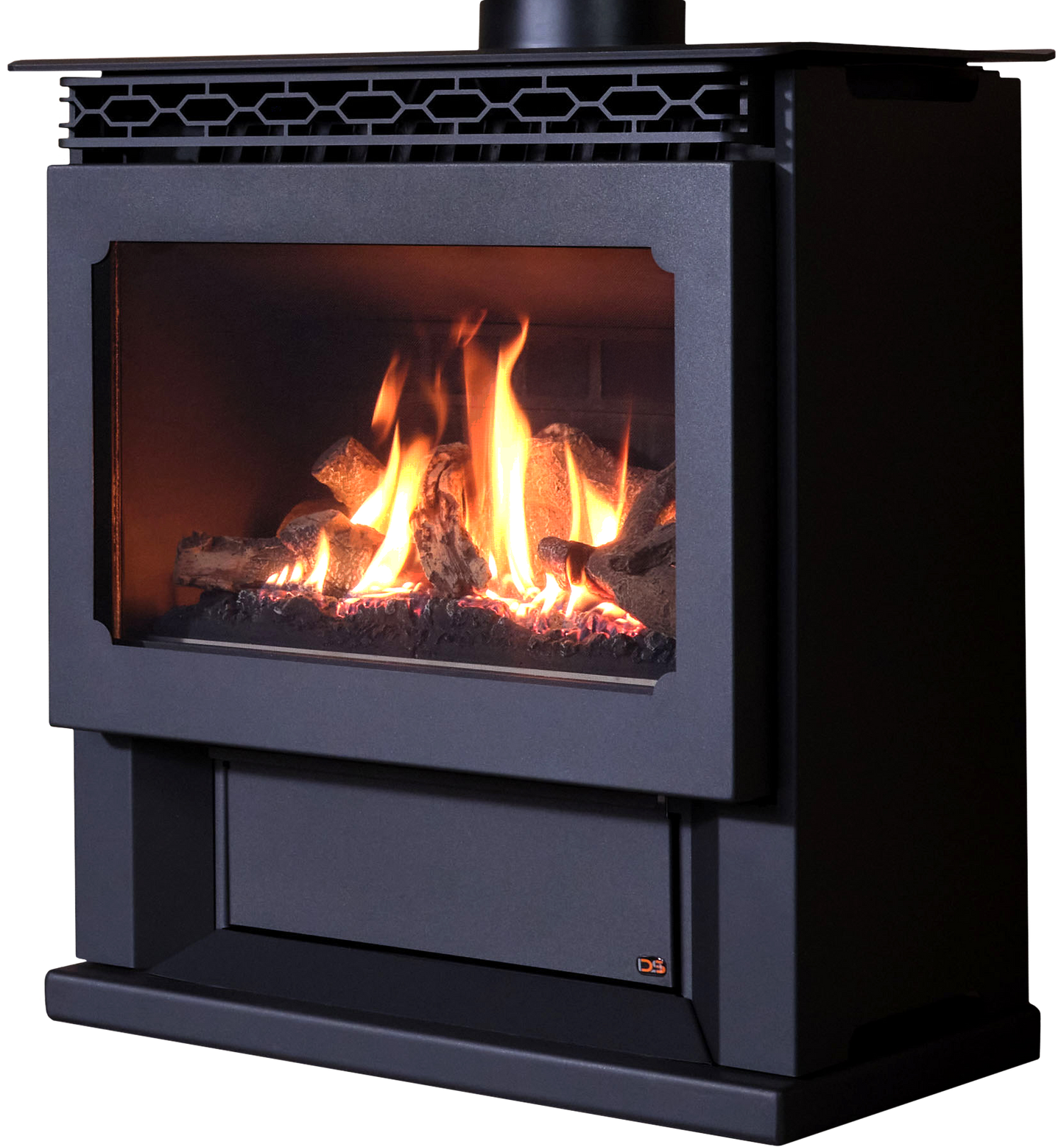

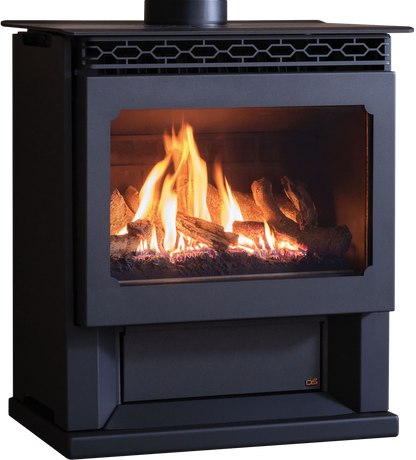

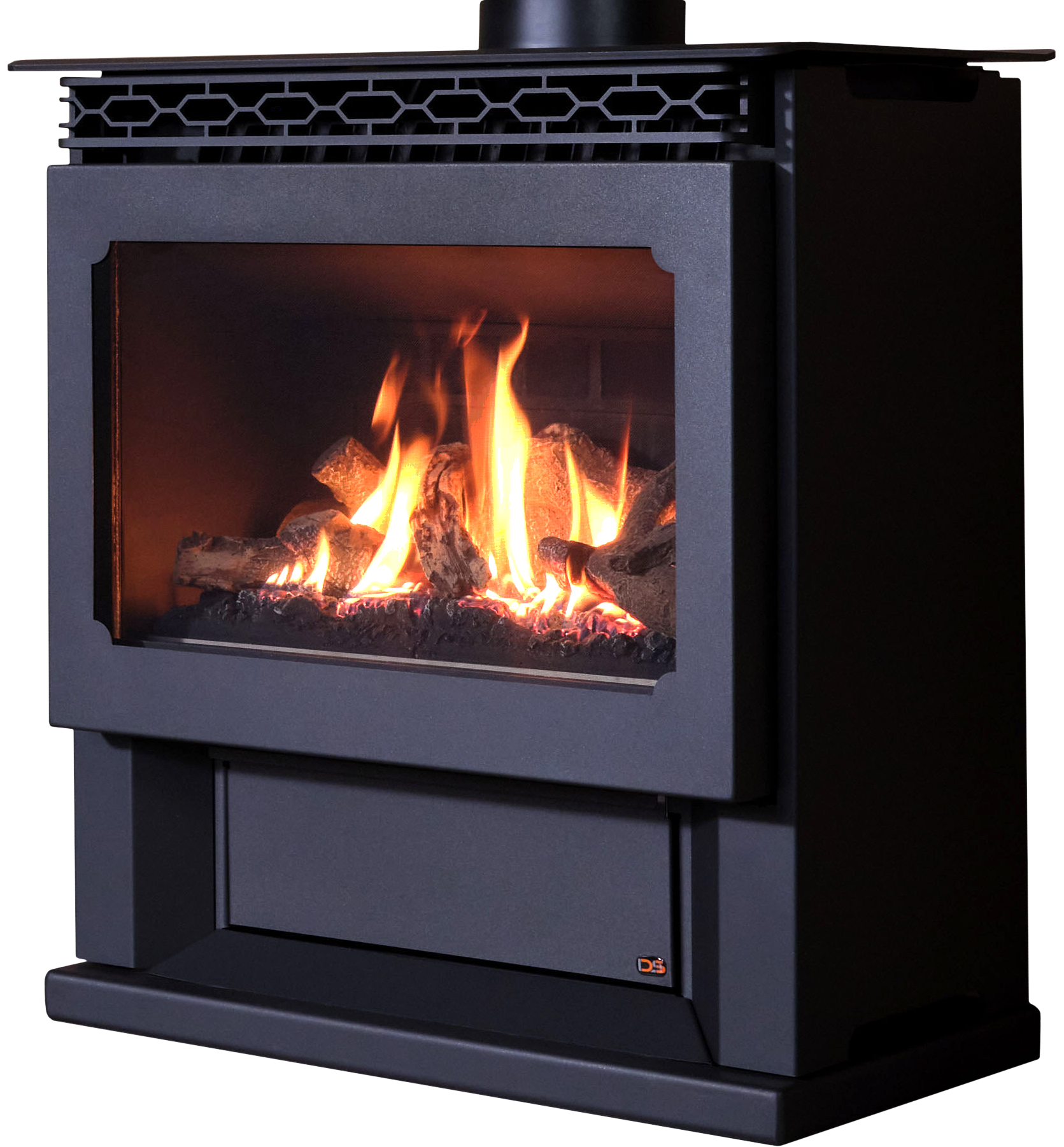

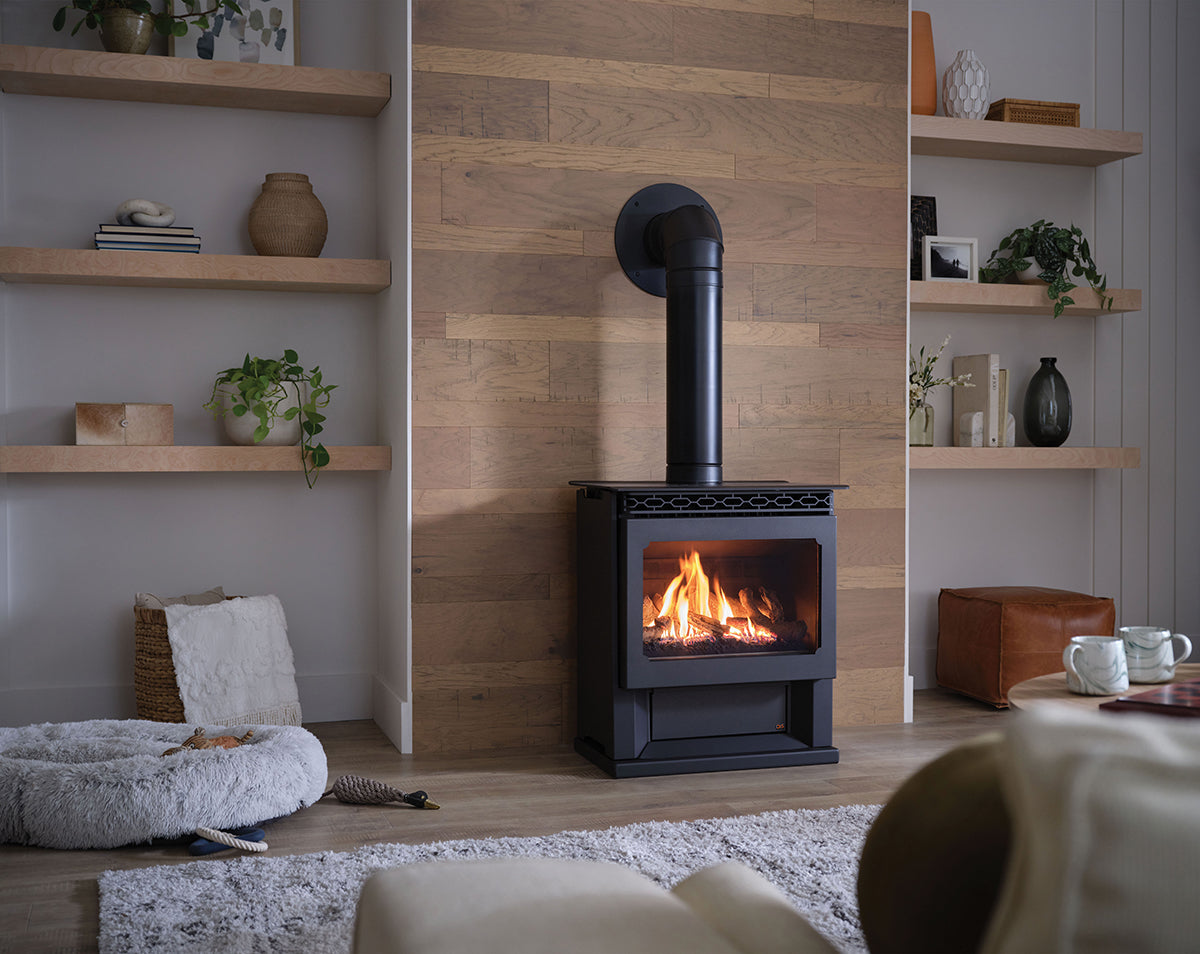

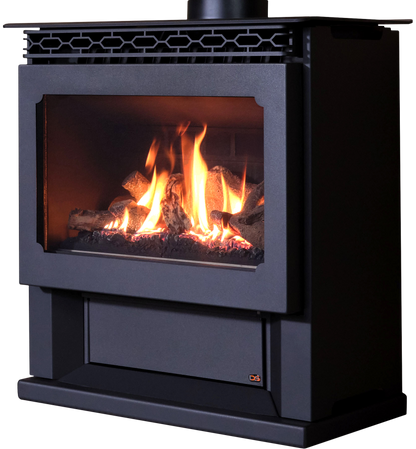

For over 45 years, DS Stoves has provided exceptional heating and cooking solutions. Now, we’re ushering in the rise of Quality & Performance in Gas Heating with the Dawn Series stove. This model boasts a fresh design, reliable heat, and a robust warranty. With over 40,000 BTUs, a high-efficiency heat exchanger, IPI and SP models, it offers unparalleled performance. Built by master craftsman in Lancaster, Pennsylvania, this stove is the epitome of quality, warmth, and light for every home.
Fuel: Natural Gas (NG) or Propane (LP)
BTU High Input: (NG) 40,000 | (LP) 41,000
BTU Low Input: (NG) 22,000 | (LP) 20,000
Steady State Efficiency %: (NG) 81 | (LP) 82.2
P4 High Burn Efficiency %:
(NG) 76.6 | (LP) 79.2
P4 Efficiency %:
(NG) IPI: 73.6 | SP: 71.9 (LP) IPI: 73.3 | SP: 71.5

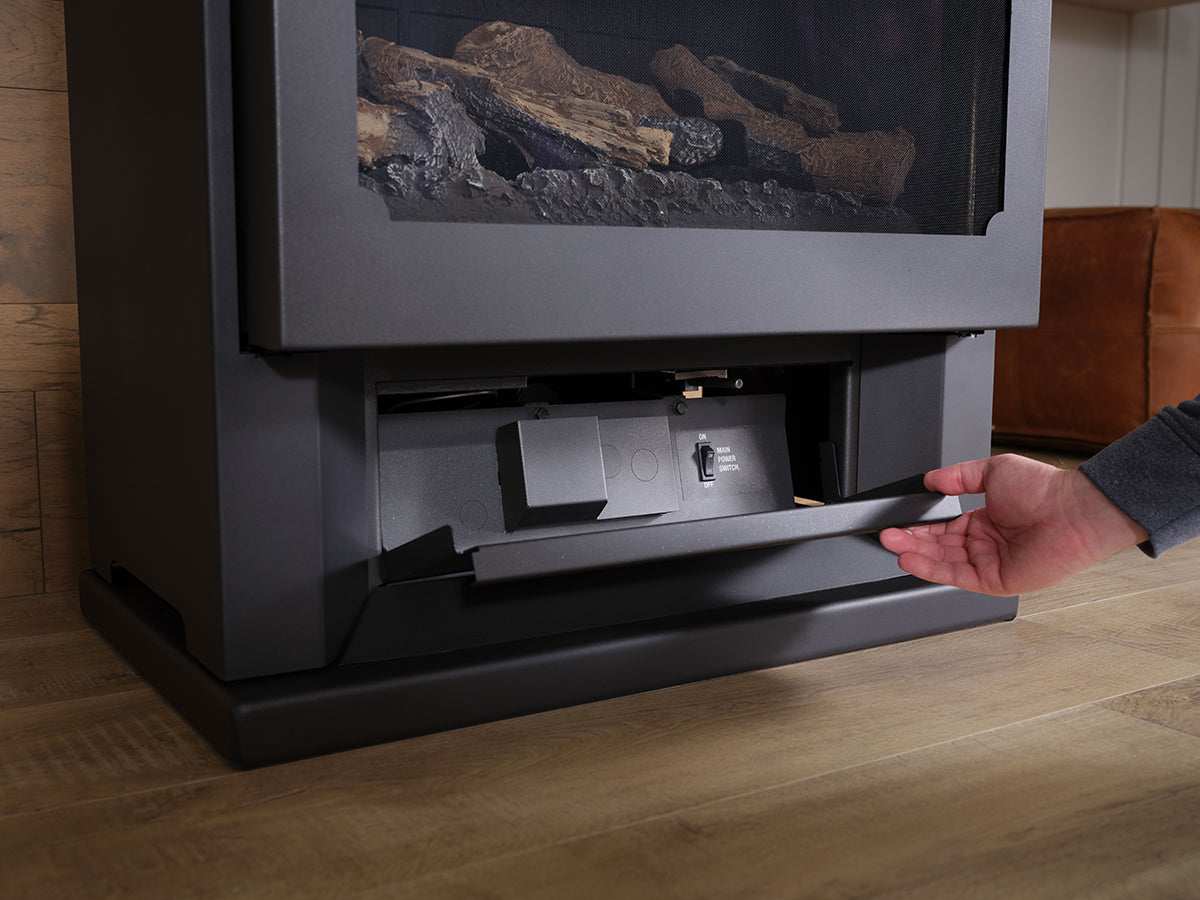

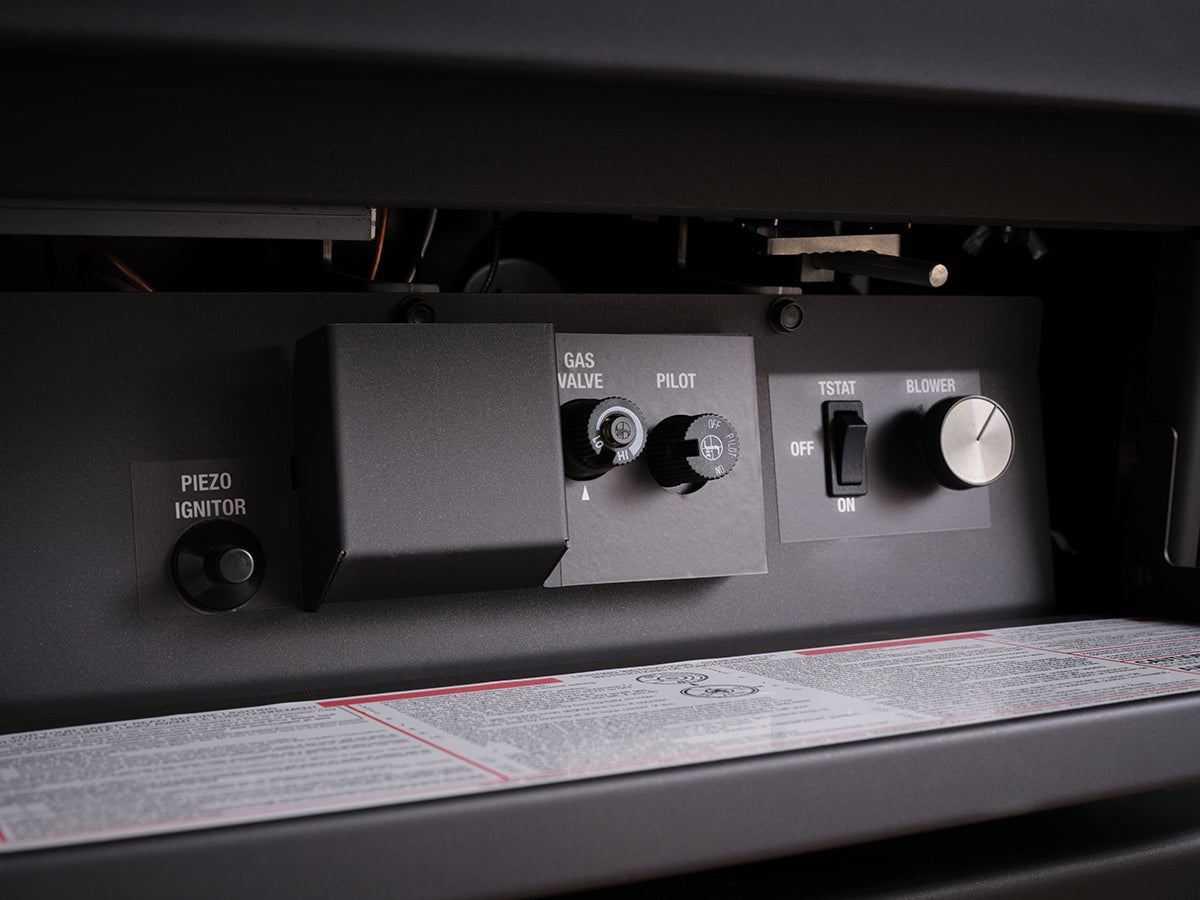

Valve System: Intermittent Pilot Ignition (IPI) or Standing Pilot (SP)
Propane Conversion Kit:
IPI (Optional) | SP (Included)
Heating Area: Up To 2,000 sq. ft.
Viewing Area (WxH): 21” x 13” (273 sq. in.)
Anti-Reflective Glass: Standard
Invisimesh Screen Barrier: Standard
Ceramic Oak Log Set: Standard
Ceramic Burner: Standard
Laser Cut Steel Brick Panel Set: Standard

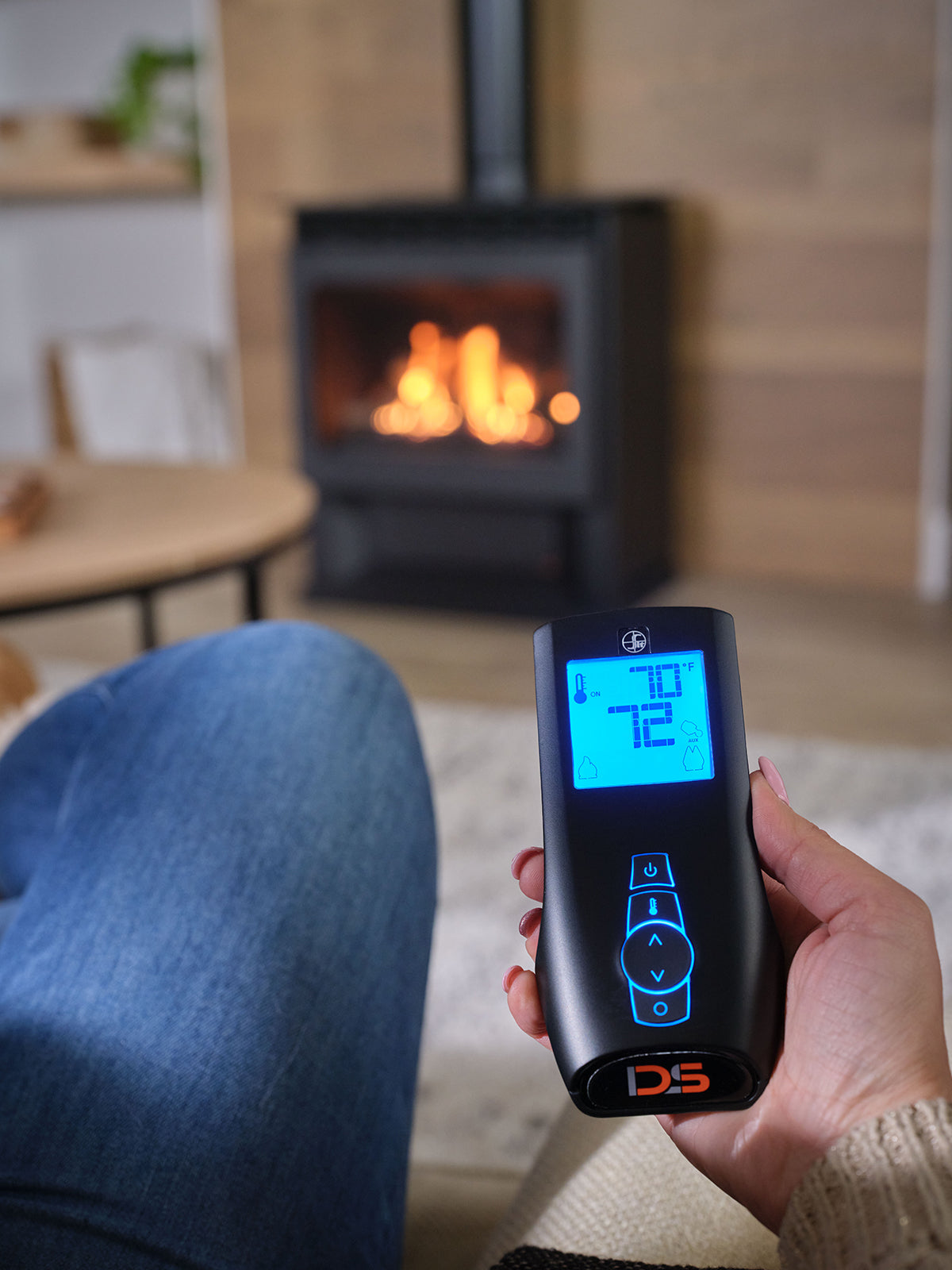

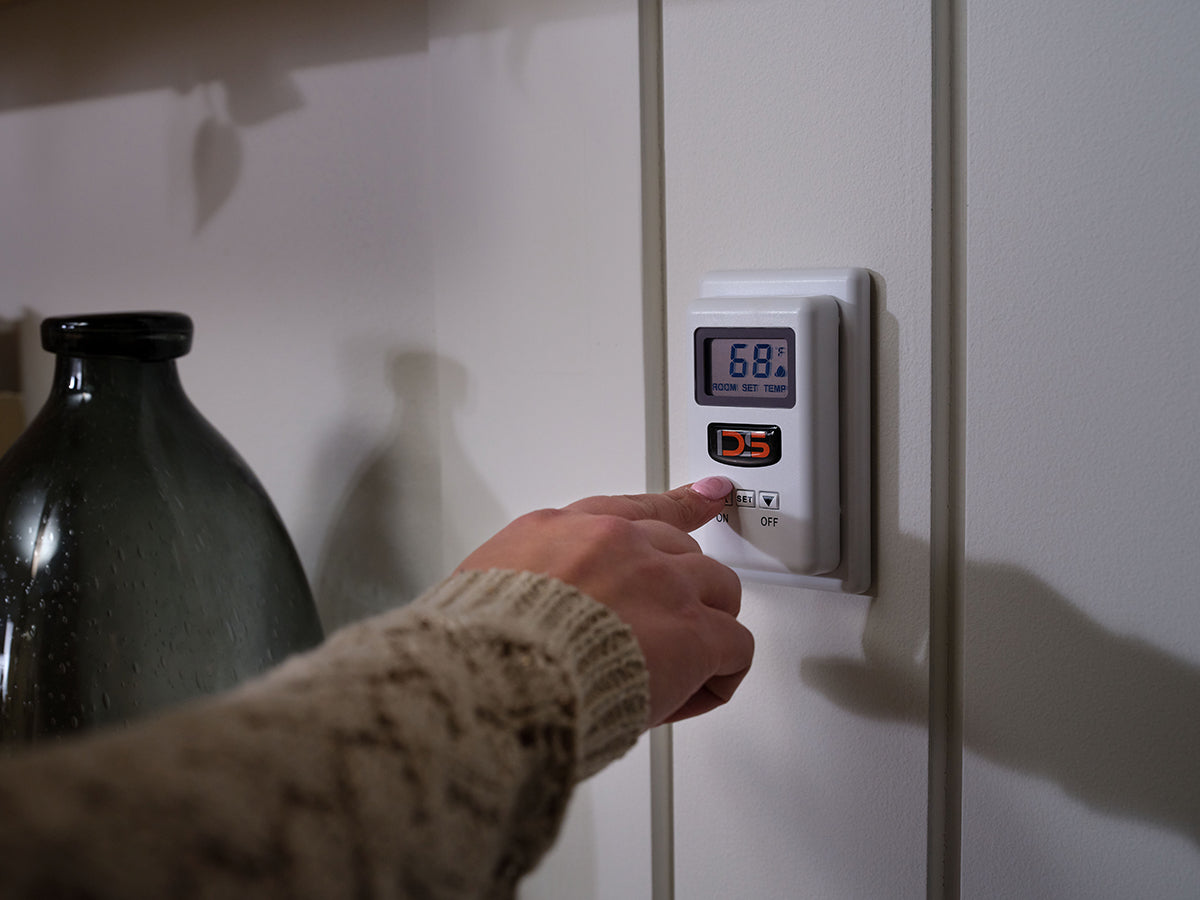

ProFlame II Remote / Thermostat:
IPI (Standard)

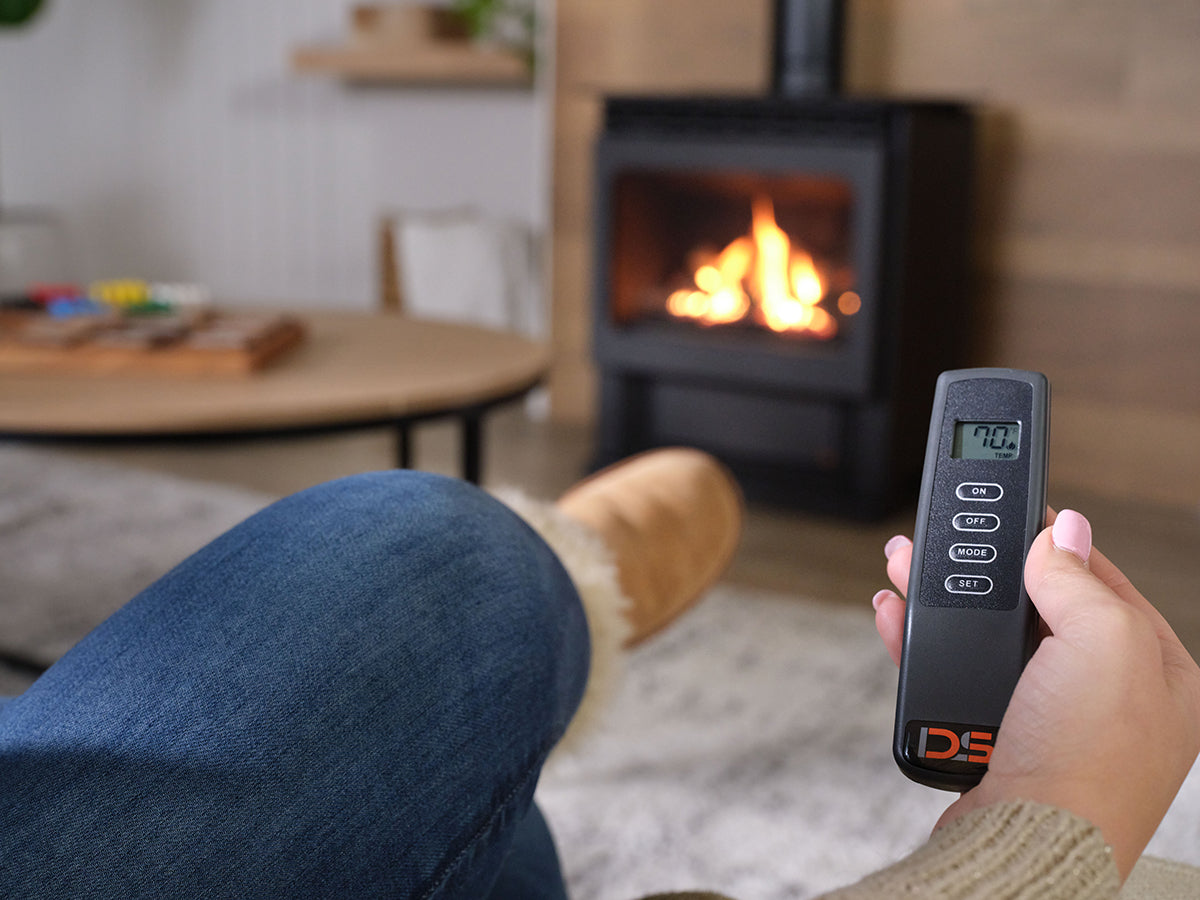

Remote, Thermostat, Wall Switch:
SP (Optional)
141 CFM Variable Speed Blower: Standard

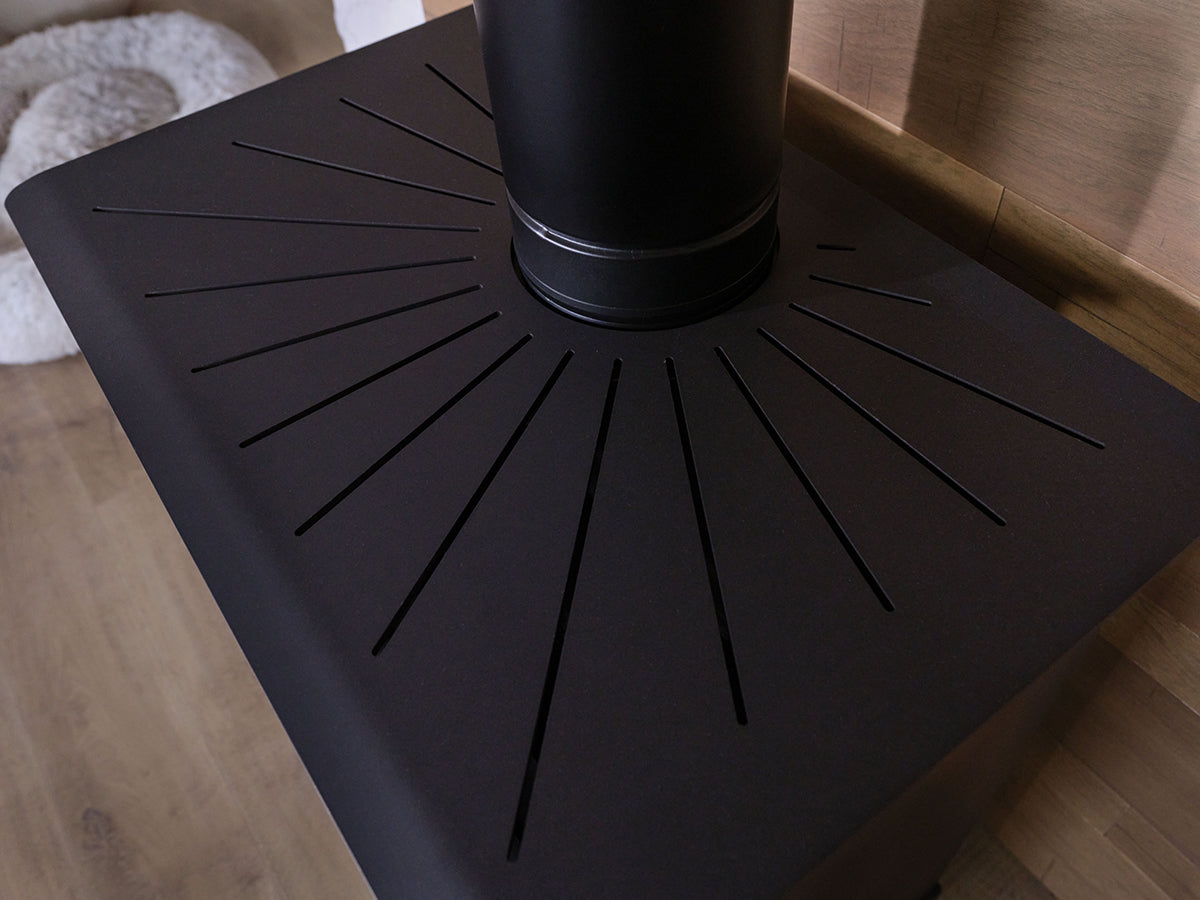

Top Exhaust: 4” Direct Vent
Overall Size (WxDxH): 28” x 19.127” x 31.6”
Standard Weight: 330 lbs (149.7 kg)
Safety Tested*: Yes
Warranty: DS Decade
Made In Lancaster County, PA
*Certifications
ANSI Z21.88-2019 / CSA 2.33-2019, Vented Gas Fireplace Heaters
CSA 2.17-2017, Gas-Fired Appliances for Use at High Altitudes
CSA P.4.1, Canada EnerGuide Efficiency Rating
Category II Heater
Massachusetts Board of State Examiners of Plumbers & Gas Fitters Approval #G-2024-448
